Slope hatching v5.1.4

Hatching a slope symbol on topographic plans

Cost: 10 USD
*

Price for legal entities:
1000 ₽

Download demo

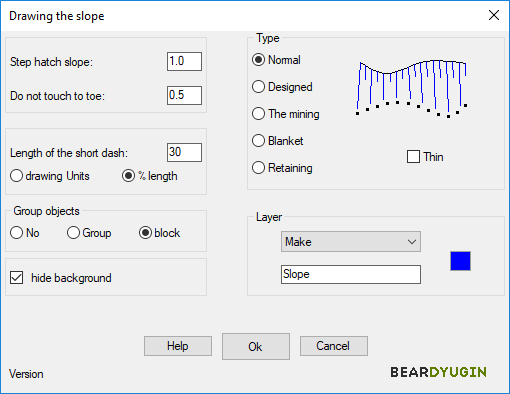

Hatch step.
Sets the distance between the strokes along the slope.


Do not touch to sole.

Sets the distance that long strokes are not brought to sole, so that they do not merge.



Short stroke length.

Sets the size of the short stroke, in drawing units or as a percentage of the long stroke.



Group objects.

You can group created strokes into a group or into a block.



Hiding the background.

When this option is selected, a "wipeout" object will be created behind the entire area of the slope, hiding all objects lying under the slope.



Type.

  • Normal
  • Design
  • The mining
  • Blanket
  • Retaining
    [] Thin

     5 strokes is built, the next 7 are skipped, and so on

Layer. You can select a slope layer from the list of existing ones or create a new one. You can also set the color, in the case of a new layer, the colors will be assigned to the layer, in the case of selecting an existing layer, the color will be assigned directly to the slope objects.



Editing. After selecting the edge and sole, temporary solid strokes will be built, after which it will be proposed to edit their position. If you enter the editing mode, you will be asked to first select the range (sector) of stroke editing, then select the main editable stroke in this range and indicate its new position. After exiting the editing mode, the strokes will take on the form specified by them, according to the selected type.



Preservation. All entered / selected data in the dialog will be saved, even between AutoCAD sessions



The following types of objects can be selected as the edge \ sole:

  • Line,
  • Polyline (2D \ 3D),
  • Spline,
  • Feature lines (Civil)

Installation

The application is installed in the C:\ProgramData\Autodesk\ApplicationPlugins folder. AutoCAD (CIVIL 3D) starting from version 2013, at startup, they go into this folder themselves, and load the necessary data from there, after which a corresponding new panel will appear on the Ribbon, on the "Add-Ins" tab.

Purchase \ Registration

The purchase comes from the application itself, after installing it and running the command in AutoCAD (CIVIL 3D), a window will appear about the trial period, in this window there will be a button "Buy", which will launch the registration form in the browser. Activation of the application is tied to the PC hardware, changing AutoCAD does not affect in any way, reinstalling the operating system will require re-entering the activation code, but the code itself will not change and the code obtained earlier will do. Changing the PC will require a new registration (purchase).

Update

Registration is not tied to the version of the application, so the installation of a new version will not require an additional fee.



Deleting

Removal is performed using standard Windows methods through the Control Panel -> Add \ Remove Programs
